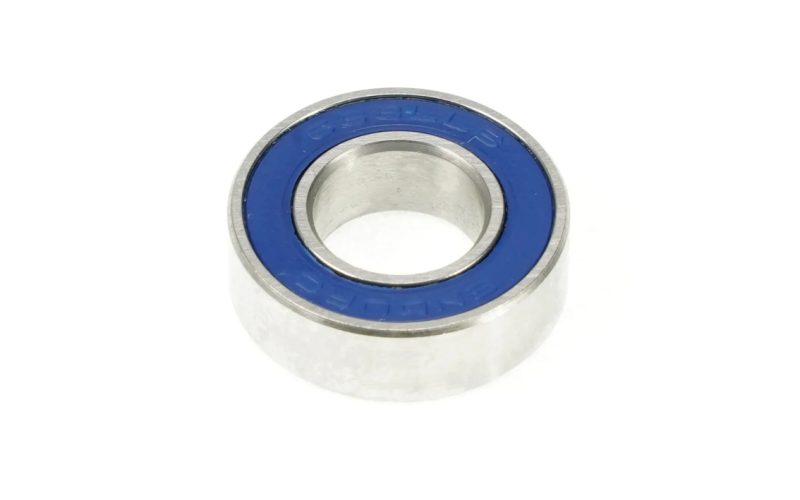

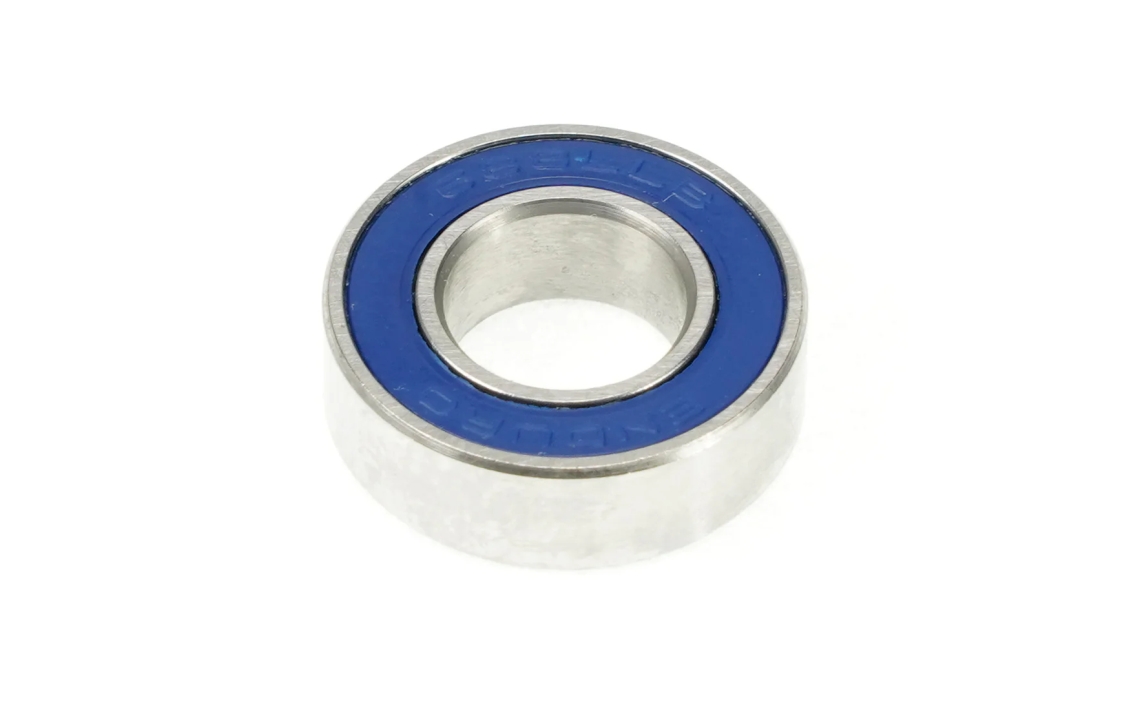

Guolis Enduro Bearings 688 LLB ABEC 3

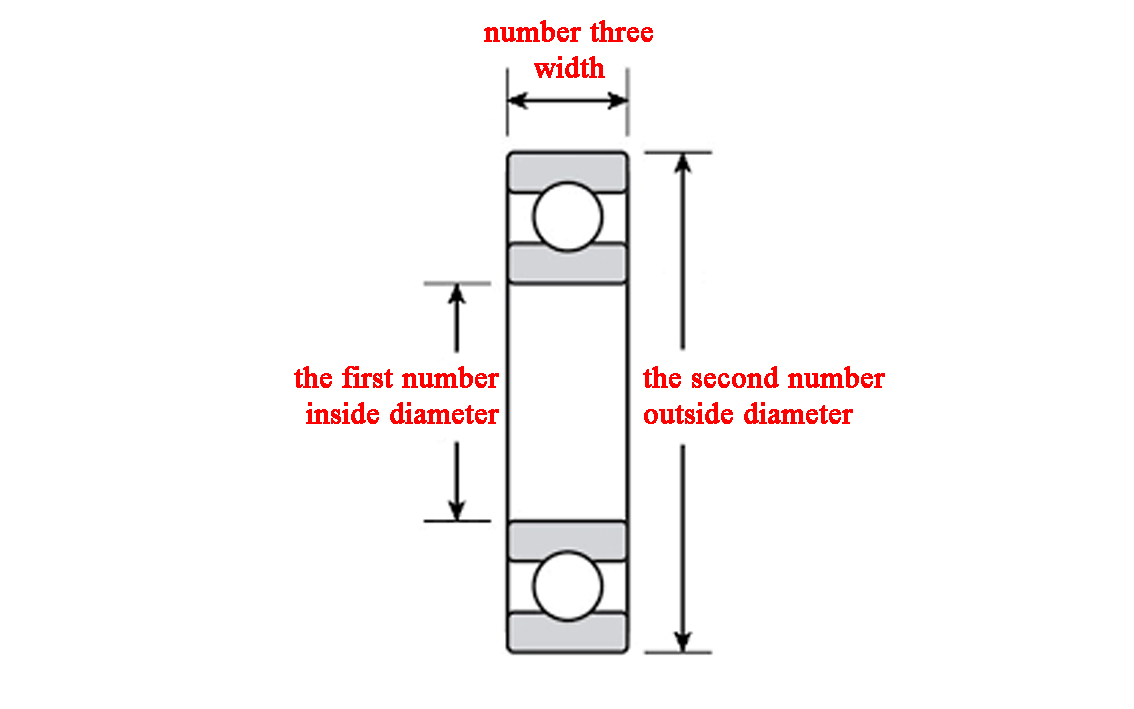

688 LLB – ABEC-3 radial Bearing (C3 clearance) – 8mm x 16mm x 5mm –

This radial bearing has been used as a hub bearing and as a pivot bearing though the MAX-type version of this bearing is better suited for suspension use. This ABEC-3 radial bearing features 52100 high-Carbon Chromium alloy races paired with Grade 10 balls and dual-lip labyrinth (LLB) seals to withstand the outside elements, and to contain the 90% fill Mobil XHP 222 high pressure water proof synthetic grease.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating full labyrinth to provide long life and superior protection against the elements.

Static load – 162lbf / 0.72kN
Weight – 3.7g
