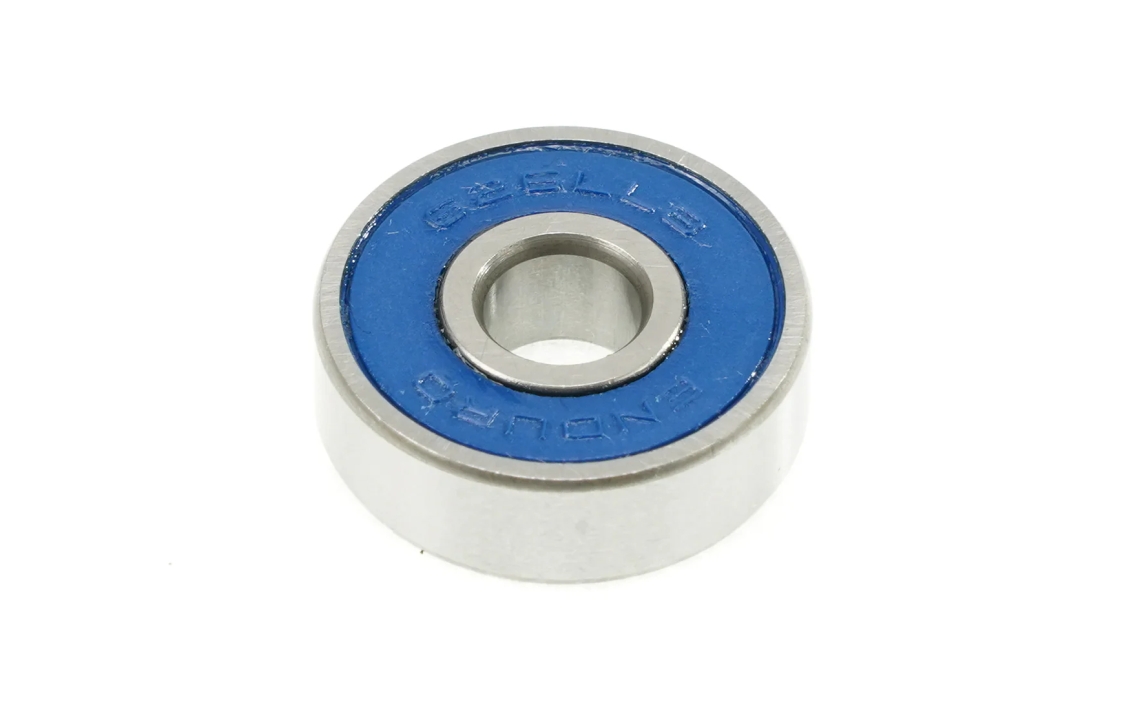

Guolis Enduro Bearings 626 LLB ABEC 3

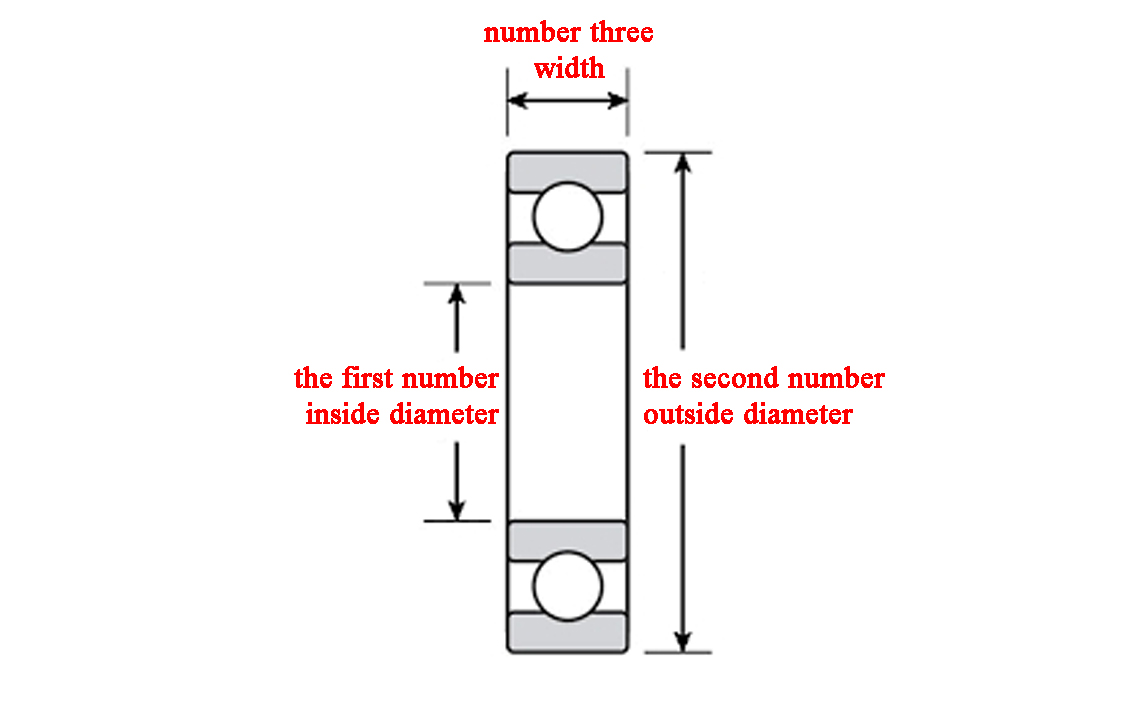

626 LLB – ABEC-3 radial Bearing (C3 clearance) – 6mm x 19mm x 6mm –

This radial bearing has been used as a pedal bearing and as a pivot bearing on some full suspension designs though the MAX-type version of this bearing is better suited for pivot applications. This ABEC-3 bearing features 52100 High-Carbon Chromium alloy races paired with Grade 10 balls and dual-lip labyrinth (LLB) seals to withstand the outside elements, and to contain the 90% fill Mobil XHP 222 high pressure water proof synthetic grease.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating full labyrinth to provide long life and superior protection against the elements.

Static load – 200lbf / 0.89kN
Weight – 7.5g
